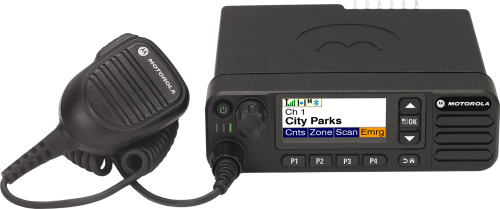

Motorola DM4601e MOTOTRBO DMR Digital Mobile Radio
Motorola DM4601e MOTOTRBO
Motorola MOTOTRBO DM4601e - the next-generation radio With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive.
The DM4000e Series is designed for the skilled professional who refuses to compromise. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organisation.
Here's what's new in these next-generation radios:
- Bluetooth® 4.0
- indoor location tracking
- Multi-constellation Global Navigation System
- Integrated Wi-Fi®
- Over-the-air software updates
The DM4000e Series includes:
- DM4601e
- DM4600e
- DM4401e
- DM4400e
This is the DM4601e version.
Key Features
IP54 Rated
1000 Channels
Integrated GNSS (GPS and GLONASS)
Integrated Bluetooth 4.0 LE
Capacity Plus Ready
Lone Worker
4 Line Alphanumeric Display
Caller Display
1 To 1 Private Calling
Features:
Connected
The DM4000e Series is a family of ETSI DMR Standards compliant digital radios that deliver's operation-critical voice and data communications. Bluetooth audio lets you talk without wires, integrated Wi-Fi enables remote software updates and indoor and outdoor location-tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.
Productive
Text messaging and Work Order Ticketing simplifies complex communications, and data capabilities support advanced applications. Featuring a high power audio amplifier, these radios deliver a loud, clear speech, with background noise cancellation for better intelligibility. DM4000e Series radios are also ideal as a dispatcher solution, with desktop microphones and a rugged, durable design for everyday use.
Safe
Safeguard your staff with responsive push-to-talk technology. The quick access buttons on DM4000e Series radios can summon help with one touch, using Transmit Interrupt to clear a channel when necessary. A range of safe driving accessories allows your workers to communicate hands-free and text-to-speech technology helps your drivers keep their eyes on the road.
Performance Characteristics:
Frequency range
VHF: 136-174 MHz
UHF Band 1: 403-470 MHz
UHF Band 2: 450-512 MHz
300 Band 1: 300-360 MHz
300 Band 2: 350-400 MHz
Power levels
VHF: 1-25W / 25-45W
UHF Band 1: 1-25W / 25-40W
UHF Band21: 1-40 W
300MHz: 1-40 W
Repeater capable
Yes
Physical Characteristics
Dimensions H x W x D
53 x 175 x 206 mm (2.1 x 6.9 x 8.1 in)
Weight
1.8 kg (3.9 lb)
Configurations
Dash Mount, Remote Mount Capable
Remote mountable control head
Yes
Radio Features :
Number of channels
DM4600e/DM4601e: 1000 channels
DM4400e/DM4401e: 99 channels
Channel spacing
12.5, 20, 25
Technology:
Digital technology
Yes
System type
Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus Trunking
User Environment:
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP54
